Quotes - Engineering - SalesTankless Falling Film Chiller
Mueller Falling Film Chillers| Product | Capacity | Ratings | Material |
|---|---|---|---|
| Falling Film Chiller | 588 to 7,512 GPH | 300 PSI / 400°F | Stainless Steel |
-Download Datasheet

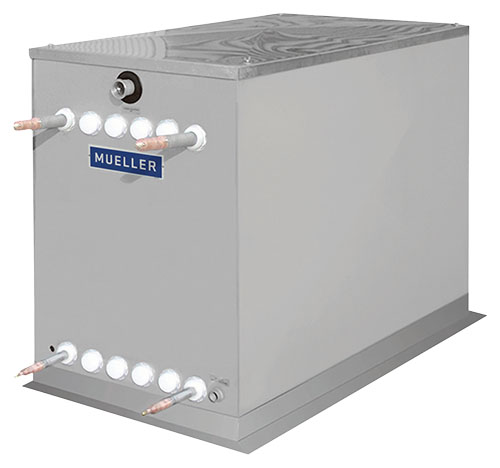

Note: Unit pictured is representative of standard unit and may not exactly depict the Tankless Falling Film Chiller as shown on this page.
Product Overview
Part Number:
Tankless Falling Film Chiller
Series:
Falling Film
Brand:
Paul Mueller Company
Configuration
Connections:
Threaded Fill/Overflow
Refrigerant:
R-404A, R-448A/R-449A, R-454C, R-717
System Type:
Direct Expansion, Flooded, Recirculated
Materials of Construction
- Cabinet: Type 304 Stainless Steel, 2B Finish
- Evaporator Plates: Stainless Steel
- Tank: N/A (Tankless)
- Distribution Pan: Stainless Steel
- Welds: Bead-Blasted Stainless Steel
Specifications
- Number of Plates: 4-24
- Lenght x Width x Height: Varies (see table)
- Maximum Shipping Weight: 4,220 lb
- Tank Capacity: N/A
| TANKLESS FALLING FILM CHILLER SPECIFICATIONS AND SIZING | ||||||
|---|---|---|---|---|---|---|
| Cabinet Size | Number of Plates | Refrigerant Connection Sizes | Length x Width x Height (in)) | Weight With Plates (lb) | Water Pan Connection Size | |
| Inlet* | Outlet* | |||||
| 3x5 | 4 | 1.125" Tube | 1.5" Tube | 70 x 25 x 47 | 643 | 2" or 3" MPT |
| 3x5 | 8 | 1.125" Tube | 1.5" Tube | 70 x 41 x 47 | 990 | 2" or 3" MPT |
| 4x8 | 4 | 1.125" Tube | 2" Pipe | 108 x 29 x 62 | 1,020 | 4" or 6" MPT |
| 4x8 | 8 | 1.125" Tube | 2" Pipe | 108 x 43 x 62 | 1,550 | 4" or 6" MPT |
| 4x8 | 16 | 1.125" Tube | 2" Pipe | 108 x 67 x 62 | 2,980 | (2) 4" or 6" MPT |
| 4x8 | 24 | 1.125" Tube | 2" Pipe | 108 x 104 x 62 | 4,220 | (3) 4" or 6" MPT |
